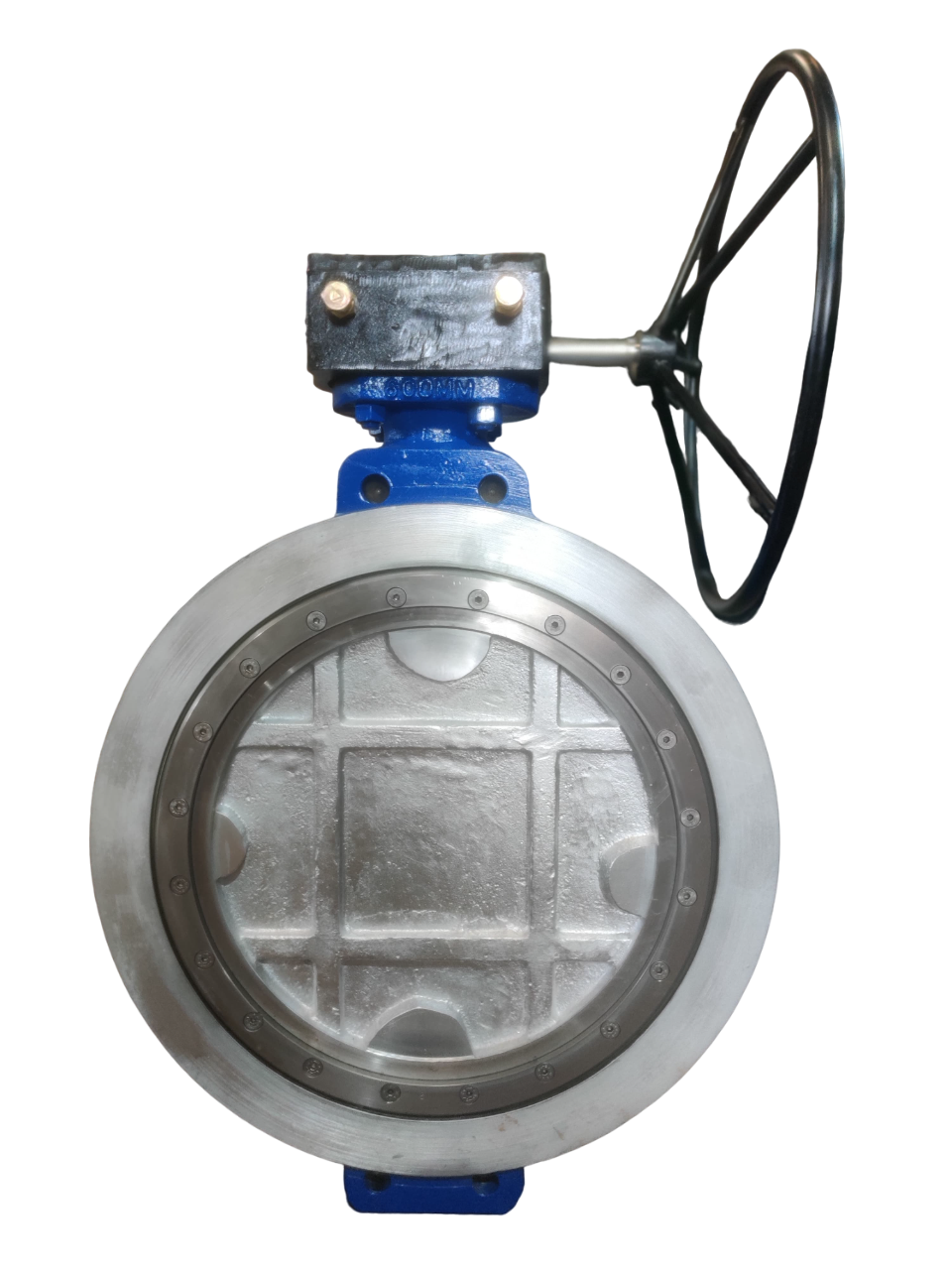

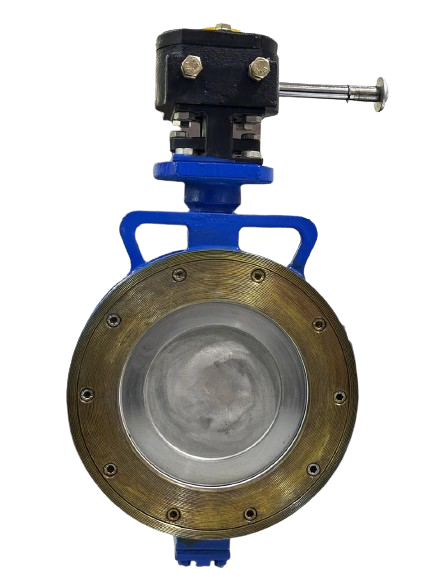

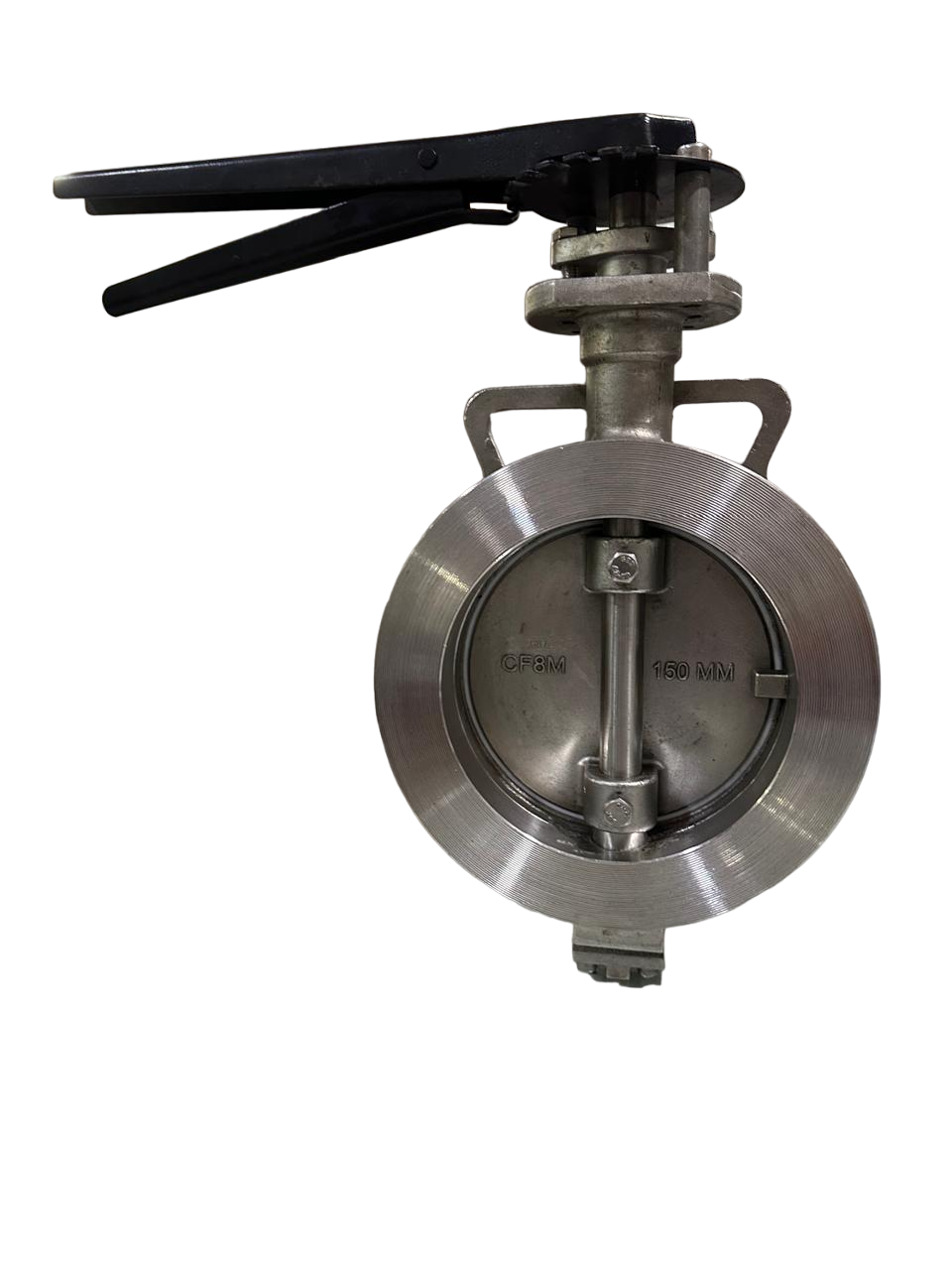

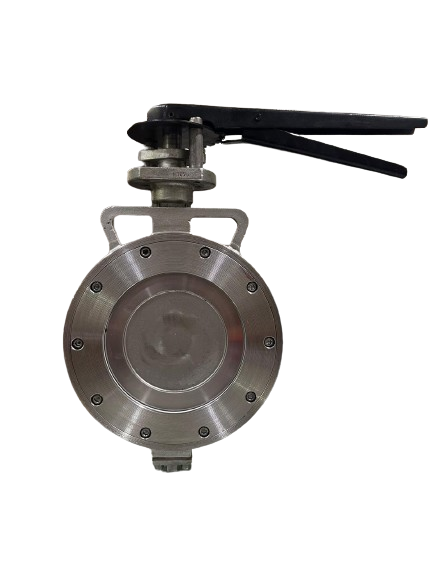

Double offset butterfly valve
Molded Seat Centric Disc Design
Key Features & Benefits
✓
Low torque resulting in low wear & long life✓
Replaceable seat options available✓
Easy to assemble & dismantle in replaceable seat✓
Top flange as per ISO 5211 for easy actuation✓
Full Bore gives high CV✓
WCB & SS is Investment Casted Body upto 300mmNormative Standard
Design:API 609
Testing:API 598
Face to Face:API 609
Size Range:40mm to 1000mm
Pressure Rating
PN 10/PN 16
End Connection
Wafer to suite ANSI 150 Class /DIN PN 10 & 16
Materials
Body: WCB, CF8, CF8M, CF3, CF3M, Duplex, Super Duplex, etc.
Disc: WCB, CF8, CF8M, CF3, CF3M, Duplex, Super Duplex, Nylon Coated, etc.
Seat: PTFE, R-PTFE, CGT, GFT, etc.
Operation
MS/SS Handle, Warm Gear, Pneumatically Actuated, Electrically Actuated (Motorised), Limit & Tamper Switch Fitted
