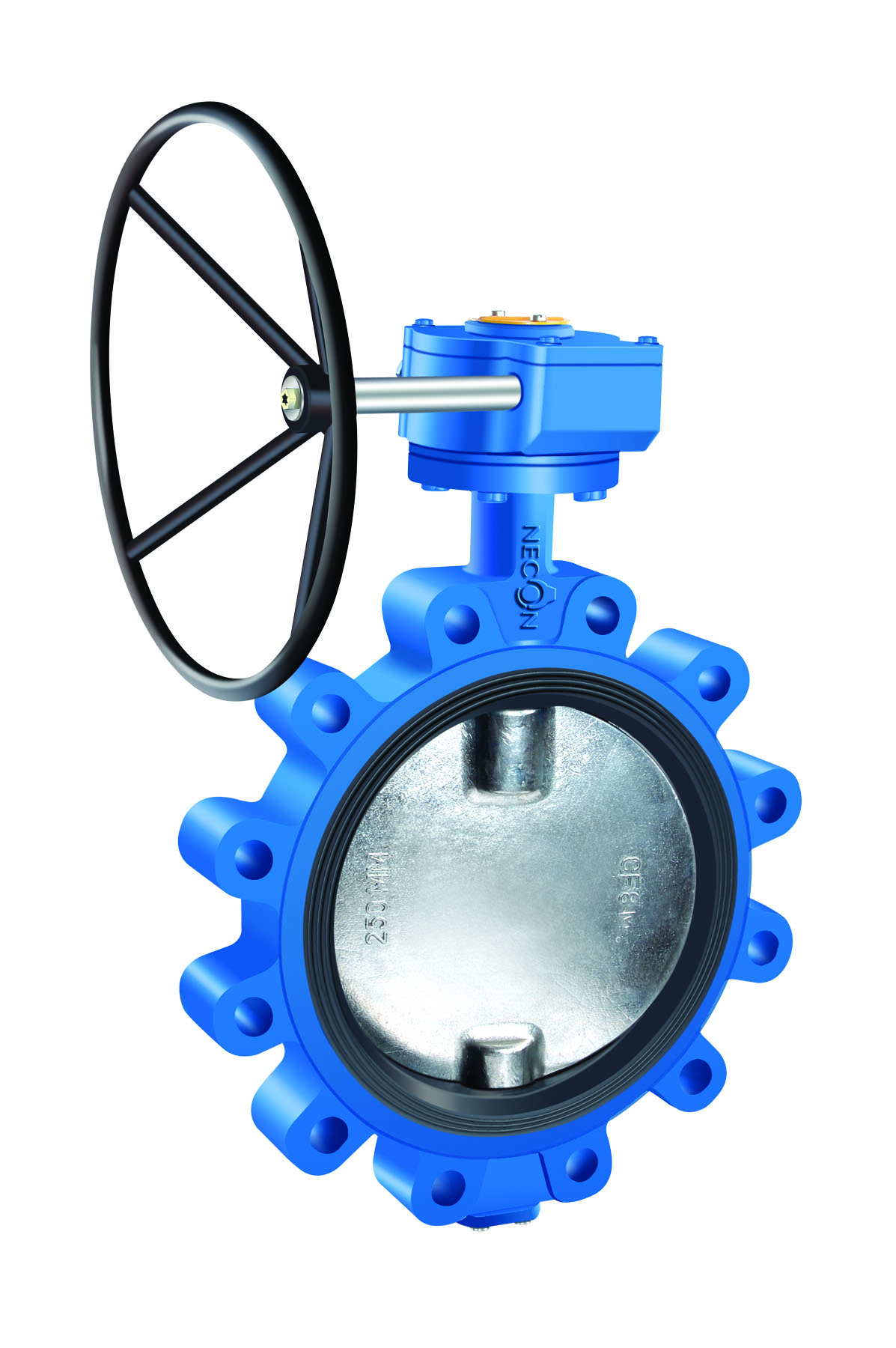

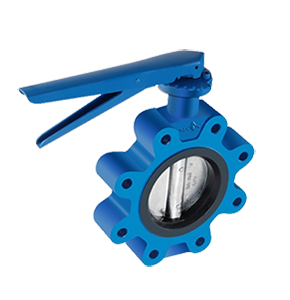

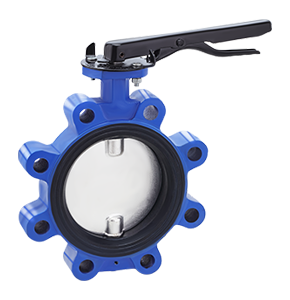

Lug type butterfly valve
Molded Seat Centric Disc Design
Key Features & Benefits
✓
Low torque resulting in low wear & long life✓
Molded seat options available✓
Easy to assemble in Molded seat✓
Top flange as per ISO 5211 for easy actuation✓
Full Bore gives high CV✓
WCB & SS is Investment Casted Body upto 250mmNormative Standard
Design:IS/ISO 13095 / API 609 / BS 5155
Testing:API 598 / IS/ISO 13095
Face to Face:IS/ISO 13095 / API 609 / BS 5155
Size Range:40mm to 1200mm
Pressure Rating
PN 10/PN 16
End Connection
Wafer Lug to suite ANSI 150 Class/BS Table D & E/DIN PN 10 & 16
Materials
Body: CI, SGI/DI, WCB, CF8, CF8M, CF3, CF3M, Duplex, Super Duplex, etc.
Disc: CI, SGI/DI, WCB, CF8, CF8M, CF3, CF3M, Duplex, Super Duplex, Nylon Coated, Rubber Coated etc.
Seat: EPDM, Nitrile, Viton, Hypalon, Silicon, PTFE etc.
Operation
MS/SS Handle, Warm Gear, Pneumatically Actuated, Electrically Actuated (Motorised), Limit & Tamper Switch Fitted
