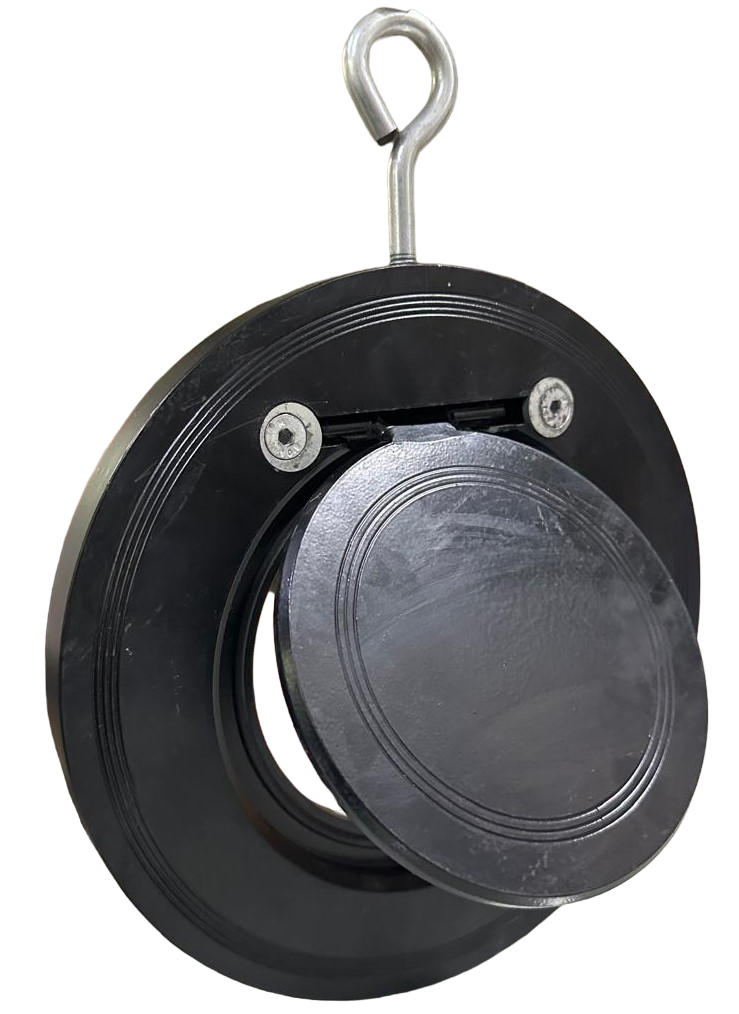

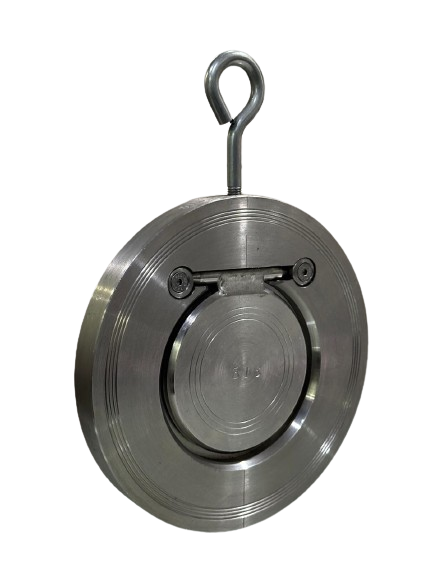

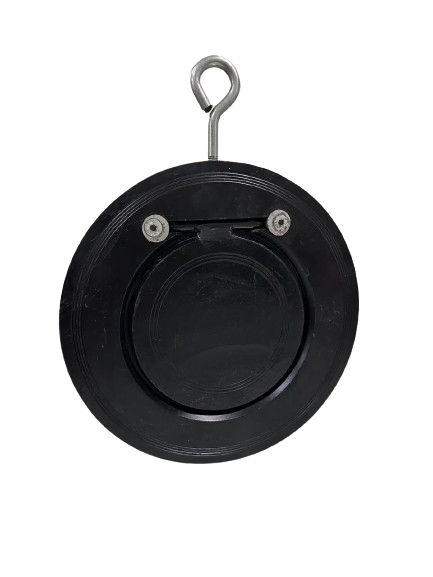

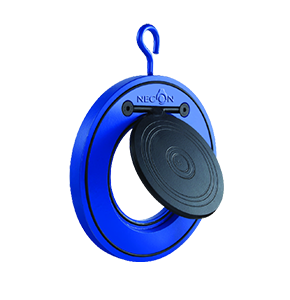

Wafer type check valve
Molded Seat Centric Disc Design
Key Features & Benefits
✓
Low cost solution for checking reverse flow✓
Both side O-Rings gives leak proof fitting✓
Less space required for installation✓
Easy InstallNormative Standard
Design:API6D
Testing:API 598
Face to Face:API 6D
Size Range:40mm to 900mm
Pressure Rating
PN 10/PN 16
End Connection
Wafer to sandwich ANSI 150 #, BS Table D & E | DIN PN 10 & 16
Materials
Body: CI, SGI/DI, WCB, SS304, SS316, SS304L, SS316L, etc.
Disc: MS, SS304 ,SS316, SS304L, SS316L, etc.
Seat: EPDM, Nitrile, Silicon, Viton, etc.
Operation
Self Operated
